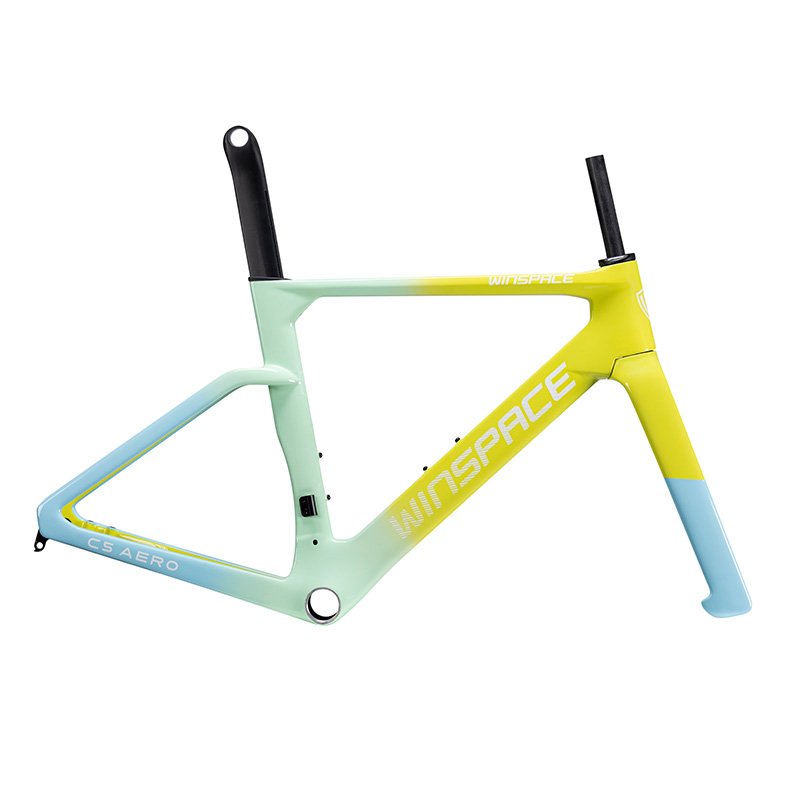

Winspace C5 Aero

*Free Shipping, No Import Fees

The C5 is our second all-round road frame launched this year, blending aerodynamic and endurance qualities. Its unique One-Piece Molding process makes it more durable and resilient, allowing you to enjoy the fun of riding and go further.

• Angled T-Tail

• Support for Up to 32mm Tire Clearance

• T47 Bottom Bracket

• 900g for M size (Unpainted)

• Thinner Tubes Design

• X-Ray Examined

• T800 + M Series High-modulus Carbon

• UCI Approved

• One-Piece Molding

WHAT'S NEW

*compare with C5 the original version

Lighter

Made from Toray T800 and M Series carbon, top-tier materials offer enhanced load-bearing capacity while reducing weight by 115g.

'TORAY"

Innovation by Chemistry

Steadier

Retains the high stiffness of the first generation, with optimized geometry and a longer RC and larger Trail for more stable handling.

Faster

The downtube, front fork, and seat tube have been widened for a more aerodynamic design.

Wind tunnel testing

Wind tunnel tests show:C5 Aero is 4.6W more efficient and 5 minutes faster over a 100km ride with a 40km/h crosswind.

X-ray Inspection

We use precise X-ray inspection to ensure quality, with interlayer gaps smaller than 1x10mm for dependable durability

One-Piece Molding

one-piece molding offers added strength and a nice smooth finish, reflecting our focus on quality and design

SPECIFICATIONS

Sizes

XS (435mm), S (465mm),

M (485mm), L (515mm), XL (535mm)

Headtube

NO.55R 1.5 /ACR/STD (headset included.)

BB

T47

Seatpost

Aero Seat Post (Included.)

Brake

Flat mount disc brake

Front derailleur

Brazed-on type

Derailleur Routing

Mechanical / Di2 /Campy EPS / SRAM eTAP

Tire clearance

Max. 700C*32C

Wheel Axle

12mm through axle F100mm R142mm

Carbon fiber

T800+ M Series High-modulus carbon yarn

Weight

Frame approximately 900g for M size

(Unpainted)
